M5: Colour string art (I7)

Status: done · Commit: see the milestone log

Goal

Deliver the colour extension promised in the project abstract (k-means palette, dithering), and do better than the prior colour method rather than just reproducing it.

Method (color.py)

  • Thread model. A thread of colour c is composited over what is beneath it, per RGB channel: C ← C(1 − a) + c·a with a = opacity × coverage. For black thread on a white board this is exactly the grayscale model, and a test confirms that a black-only palette reproduces the grayscale solver's pin sequence exactly.
  • Palette. k-means (cv2.kmeans) in CIELAB on the image. Each centre is snapped to the nearest real thread colour from a 16-colour sewing/embroidery list. Black is always included; white never is (the board supplies white). --palette black,red,tan,… overrides.
  • Joint colour greedy (ours). Each colour is its own physical thread with its own current pin. Each step takes the (colour, line) pair that most reduces the importance-weighted squared RGB error, and stops when nothing helps. Once a colour is chosen it is kept for at least min_run = 100 lines, so the builder switches spools a few dozen times instead of every line. Render order equals build order, so "over" compositing matches how the threads physically layer.
  • Baseline (LessWrong-style). Floyd–Steinberg dithering into palette + white, an independent greedy per colour on its blurred dither mask, layered light → dark.
  • Fabrication. instructions.txt lists, per spool, its line count, thread length and tie-on pin, then the global winding order in colour runs.
  • Visualizer and CLI. viz.Source replays grayscale or colour results through the same renderers. stringart run img --colors 4 (or --palette …) and stringart viz work for colour.

Results

From experiments/evaluate_color.py: 12 colourful images (faces, the veiled face, dogs, cat, lighthouse), 4 threads, 256 pins, opacity 0.2. Metrics are against the colour target after viewing blur. ΔE2000: lower is better. Luminance SSIM: higher is better.

method ΔE2000 σ2 ΔE2000 σ4 lum SSIM σ2 lum SSIM σ4 lines spool switches time s
LessWrong-style baseline 16.36 15.55 0.503 0.668 4067 3 2.0
joint colour greedy 12.59 11.81 0.662 0.801 5782 39 8.8
joint, RGB palette 12.92 12.14 0.670 0.808 6132 43 8.6
joint, no spool limit (min_run 1) 12.67 11.88 0.656 0.798 5558 144 16.6
black only (grayscale method) 16.00 15.33 0.602 0.792 3012 0 2.3
comparison Δ ΔE2000 σ2 wins Δ lum SSIM σ2 wins
joint − LessWrong-style baseline −3.77 12 / 12 +0.159 12 / 12
joint − black only −3.41 10 / 12 +0.060 10 / 12
min_run 100 − min_run 1 −0.07 5 / 12 +0.006 8 / 12
Lab palette − RGB palette −0.33 5 / 12 −0.008 2 / 12

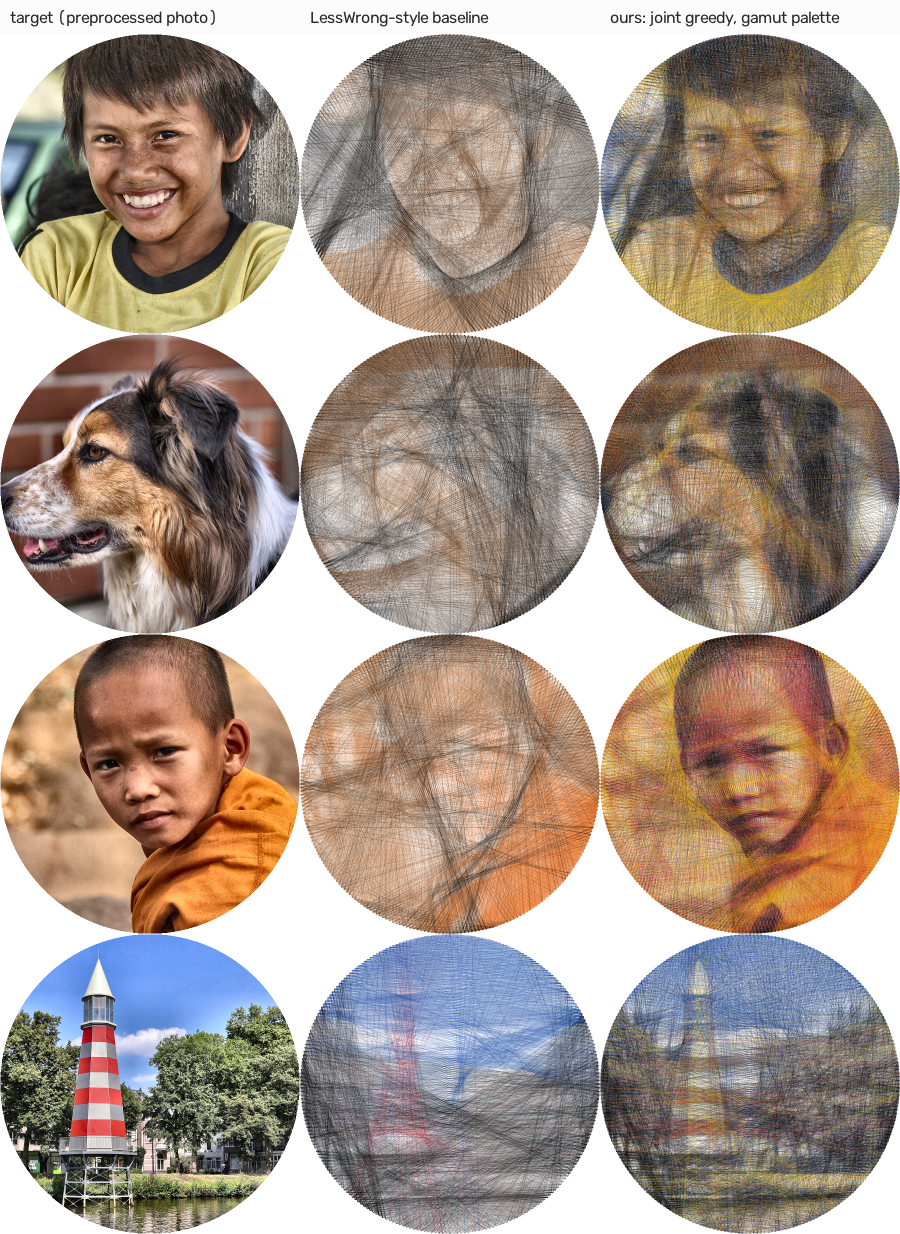

colour gallery

Photos: see Credits; derivative figure under the same licences.

Findings

  1. Joint colour greedy clearly beats the prior colour method on every image, in both colour accuracy (ΔE −3.8) and structure (luminance SSIM +0.16). The baseline's per-colour solves can't see each other, so colours over-paint one another and the structure washes out. In the gallery, the faces and the dog are recognizable only in the joint result. (The joint solver also uses importance weights; the baseline, as published, doesn't.)
  2. Colour adds real information over black thread (ΔE −3.4 on 10/12 images, luminance SSIM +0.06), at about 2× the lines and thread.
  3. The spool-switch limit is free. Requiring at least 100 lines per colour run gives the same quality as unconstrained switching, with 4× fewer switches (39 vs 144) and half the time, which makes the build practical.
  4. Lab vs RGB palette: no clear winner. Three images get the same palette either way. Of the 9 that differ, Lab wins 5 and RGB 4. Which thread colours end up in the palette matters more than the clustering space. For the boy, neither palette contains yellow, so his yellow shirt is rendered in tan. Choosing threads by their effect on the final error, rather than snapping k-means centres, is a natural next step.
  5. Cost: colour runs take about 9 s (vs about 1 s for black greedy) and use about 2× the thread. Refinement (M4) is grayscale-only for now.

Revised in M8: the default palette is now chosen by reachable gamut rather than by snapping k-means centres: ΔE2000 11.34 vs 12.56 here (−5.0 vs the LessWrong-style baseline, 12/12), confirmed on the held-out set (11.14 vs 12.59, 11/12), at a small cost in luminance SSIM. The boy's palette now includes yellow (ΔE 12.2 → 10.4). See M8.

Tests

9 colour tests: - black thread = the grayscale renderer - black-only palette = the grayscale solver, identical sequence - colour gains equal the error drop of the render (rel 1e-6) - min_run is respected - palette finds the dominant colours - dithering proportions - the baseline layers light → dark - metrics identity - unknown thread names are rejected

Plus colour visualizer, export and grid tests, and a CLI colour round trip.

Reproduce

uv run python experiments/evaluate_color.py      # ~12 min
uv run python experiments/figures_m5.py --docs
uv run stringart run photo.jpg --colors 4 --frame-mm 700 --pins 300
uv run stringart run photo.jpg --palette black,tan,brown,red
