Computational string art with OpenCV¶
Turn a photo into string art: one continuous thread wound between pins on a circular frame, or one thread per colour. The pipeline crops to the face, weights the important features, picks every line with a physically modelled self-stopping solver, refines the path, and produces a simulated render, a thread-by-thread animation and a build kit for a real piece.

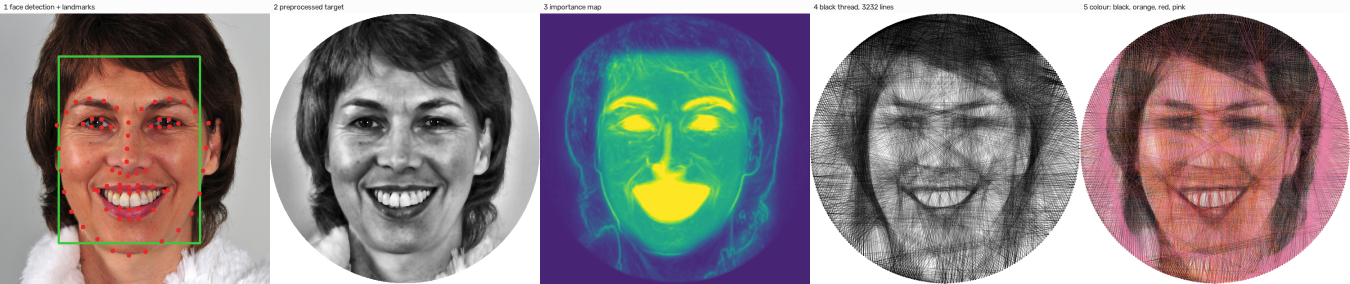

Face detection and landmarks → preprocessed target → importance map → black thread (3,232
lines, 300 pins) → four colours.
Results at a glance¶
Simulated, 600 px canvas, 256 pins, 30 openly licensed test images.
| result | |
|---|---|
| Our solver vs the prior greedy method, equal line count | better SSIM (viewing blur σ = 2) on 29/30 images, about half the time |
| Full pipeline, face region | face SSIM up on 22/22 face images |
| Path refinement (2 sweeps) | +0.011 SSIM on 24/30, +0.015 face SSIM on 21/22 |
| Badly exposed photos (held-out set) | recovered to 0.650 SSIM vs 0.657 for the clean photo; no false alarms on 12 photos |
| Colour vs the prior dither method | CIEDE2000 −5.0, luminance SSIM +0.15, on 12/12 images |
Where to go¶
| User guide | setup, the web demo, sample images, every command and argument |
| Project report | method, experiments, results, limitations |
| Build guide | turning a design into a real piece: template, calibration, winding |
| Milestone log | what was built at each step, with results and findings |
| Credits | photo authors and licences |
Try it¶
uv sync --extra demo
uv run stringart fetch-models
uv run stringart run sample:woman_smiling # → outputs/woman_smiling_greedy/render.png
uv run --extra demo stringart demo # web demo at http://127.0.0.1:7860
Or try it in the browser, with nothing to install: cv-string-art.streamlit.app (see the online version).
20XW97 project · Ajay H (22PW01) · Prem Dharshan D (22PW29)
